Rankine Cycle

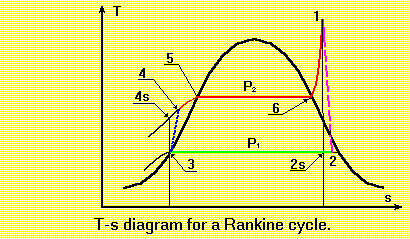

Rankine cycle is a heat engine with vapor power cycle. The common working fluid is water. The cycle consists of four processes:

Work output of the cycle (Steam turbine), W1 and work input to the cycle (Pump), W2 are:

	W1 = m (h1-h2)
	W2 = m (h4-h3)

where m is the mass flow of the cycle. Heat supplied to the cycle (boiler), Q1 and heat rejected from the cycle (condenser), Q2 are:

	Q1 = m (h1-h4)
	Q2 = m (h2-h3)

The net work output of the cycle is:

	W = W1 - W2

The thermal efficiency of a Rankine cycle is:

The efficiency of the Rankine cycle is not as high as Carnot cycle but the cycle has less practical difficulties and more economic.
